Price: $35.99
(as of May 28, 2024 09:55:25 UTC – Details)
Product Description
Specifications

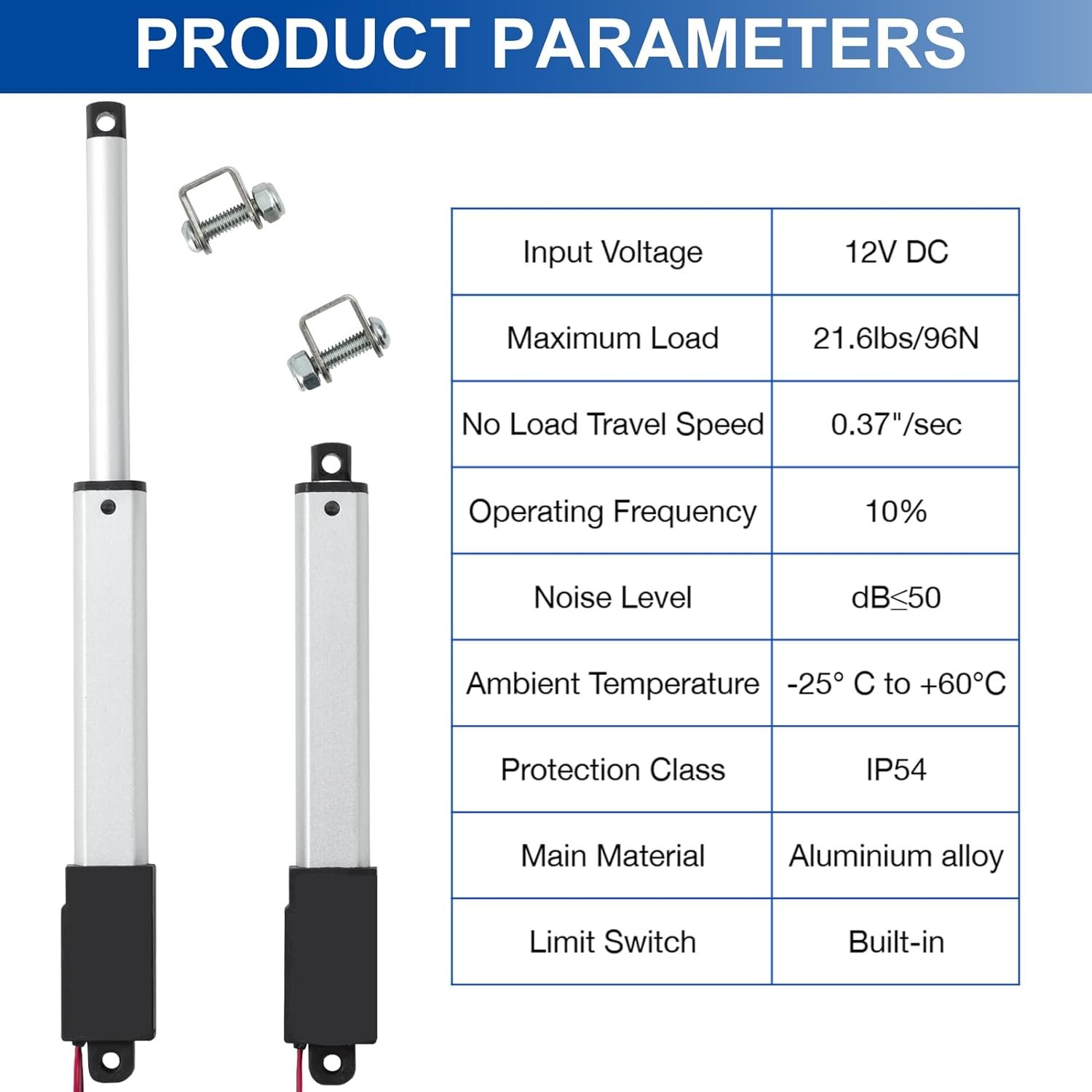

Input Voltage：DC 12VMax Load：21.6lbs/96NNo Load Travel Speed：0.37″/sec (9.5mm/s)Noise Level：＜50dBOperation Temperature：-25℃~+60℃Protection Class：IP54Duty Cycle：10%Limit Switch：Built-in
How to install the actuator ?
The linear actuators are controlled by applying a 12V DC voltage.Black wire to the positive terminal and red wire to negative terminal will make it extend. To make it retract, reverse the terminal connections.The actuator has pre-installed limit switche inside, it cannot be adjustable.It can be stopped at any position, with self-locking function.It will hold its position when the power is off. It will auto stop when it reaches the end.
How to protect the actuator ?
Please use the 12V DC power battery. If using smaller voltage, the product cannot work well, use bigger voltage maybe will damage to the product.The mini linear actuator is suitable for pushing objects, not for pulling objects.The actual load does not exceed the rated load.Please don’t store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.The operating frequency of this actuator is 10%. It means that your actuator needs 18 minutes to rest for every 2 minute of work.
What‘s in the box ?

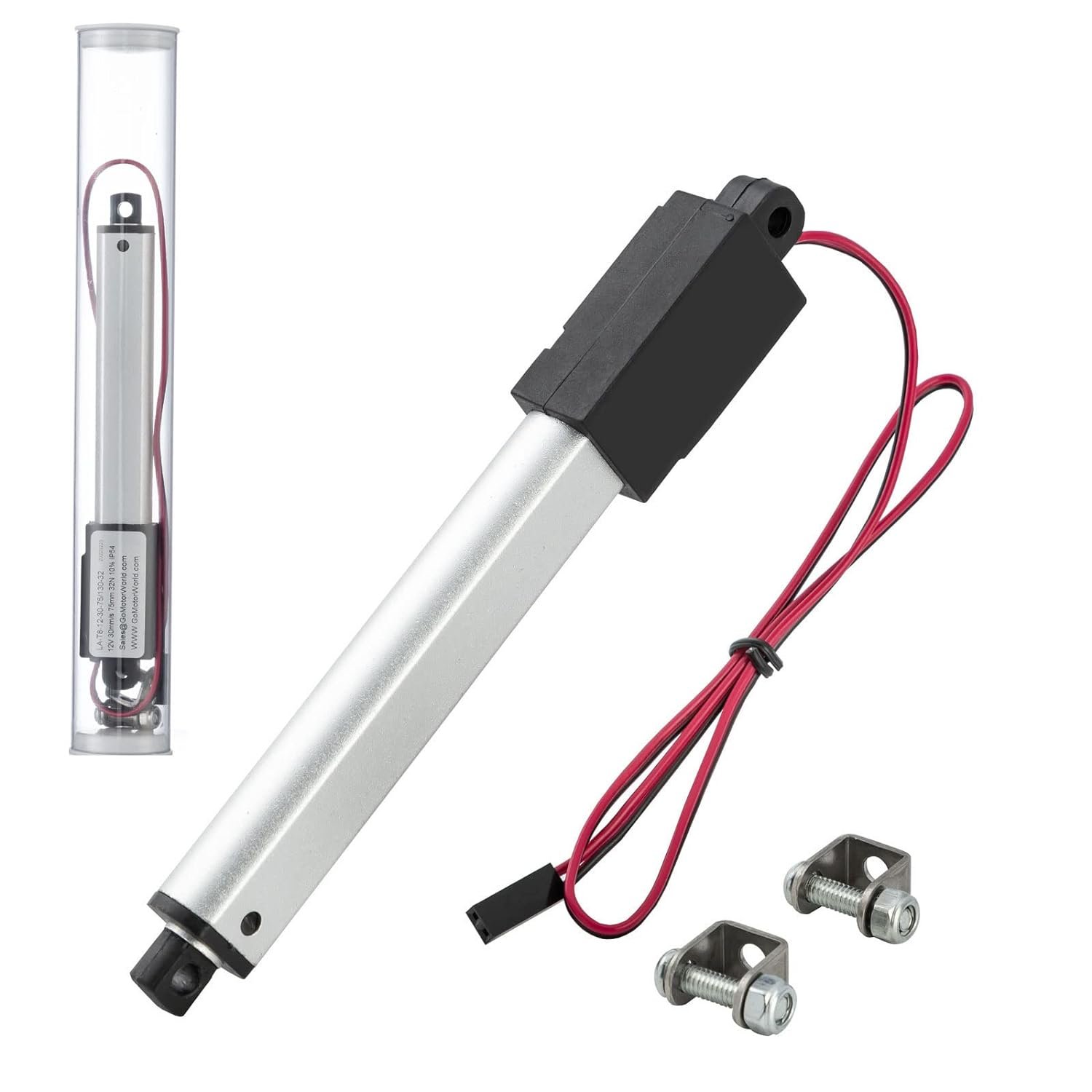

1 x Linear Actuator

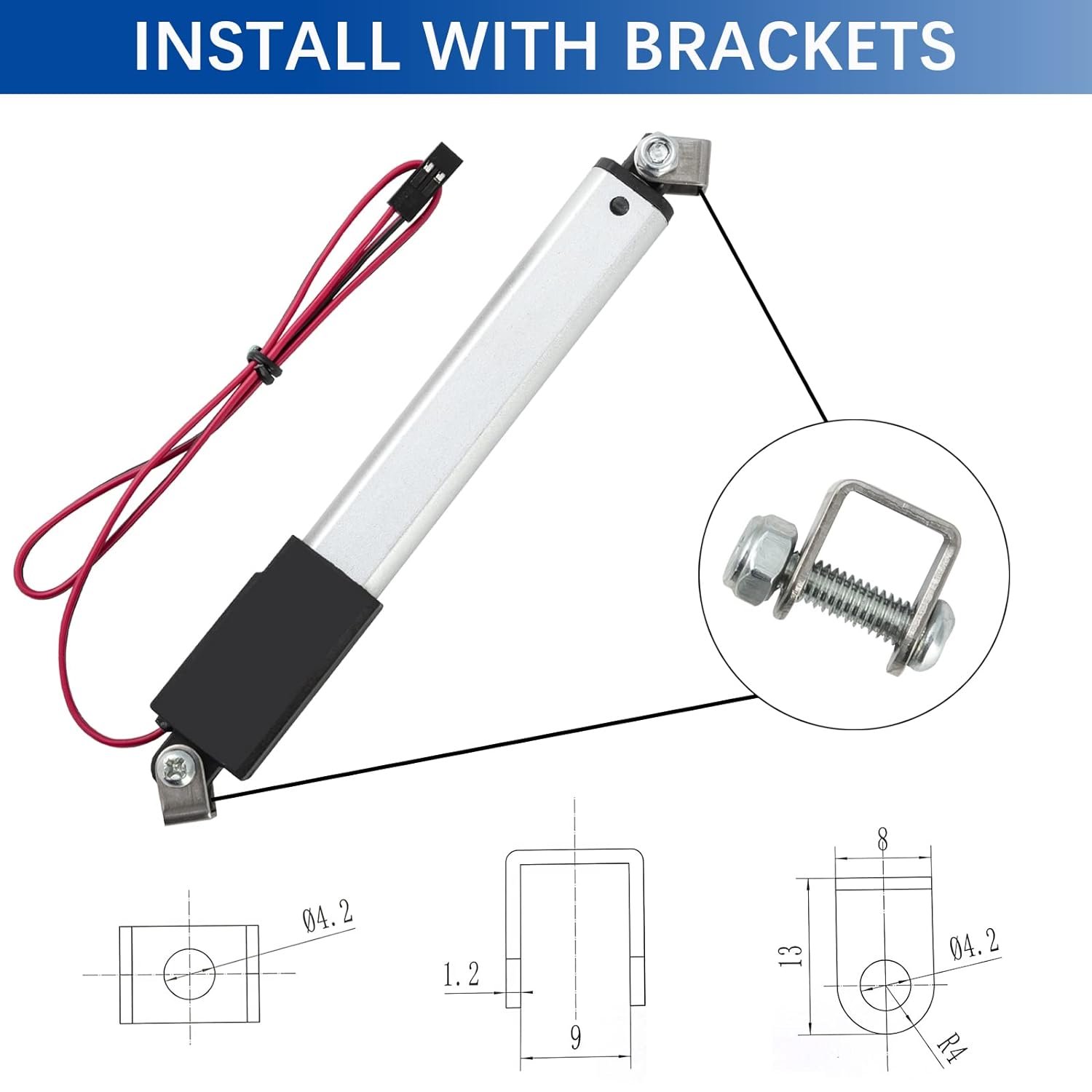

2 x Mounting Brackets
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.0 out of 5 stars
3
—
—
3.8 out of 5 stars
10
—
3.7 out of 5 stars
13
Price
$32.99$32.99 $32.99$32.99
— $35.99$35.99
— $37.99$37.99
Input Voltage
12V 12V 12V 12V 12V 12V
Max Load
1.44lbs/6.4N 4.3lbs/19.2N 7.2lbs/32N 14.4lbs/64N 28.8lbs/128N 42.2lbs/188N
No Load Speed
6″/sec (150mm/s) 2″/sec (50mm/s) 1.2″/sec (30mm/s) 0.6″/sec (15mm/s) 0.28″/sec (7mm/s) 0.2″/sec (5mm/s)
Stroke Length
1.2″ / 2″ / 3″ /4″ 4″ 1.2″ / 4″ 0.4″ / 0.83″ / 1.2″ / 2″ / 3″ / 4″ 3″ / 4″ 0.4″ / 0.83″ / 1.2″ / 2″ / 3″ / 4″
Add to Cart
Customer Reviews
—
—
Price
— $21.69$21.69
Input Voltage
12V 12V
Package Dimensions : 9.33 x 5.39 x 1.93 inches; 3.21 ounces
Item model number : MTG-7596
Date First Available : April 25, 2022
Manufacturer : JQDML
ASIN : B0B9JXBW37

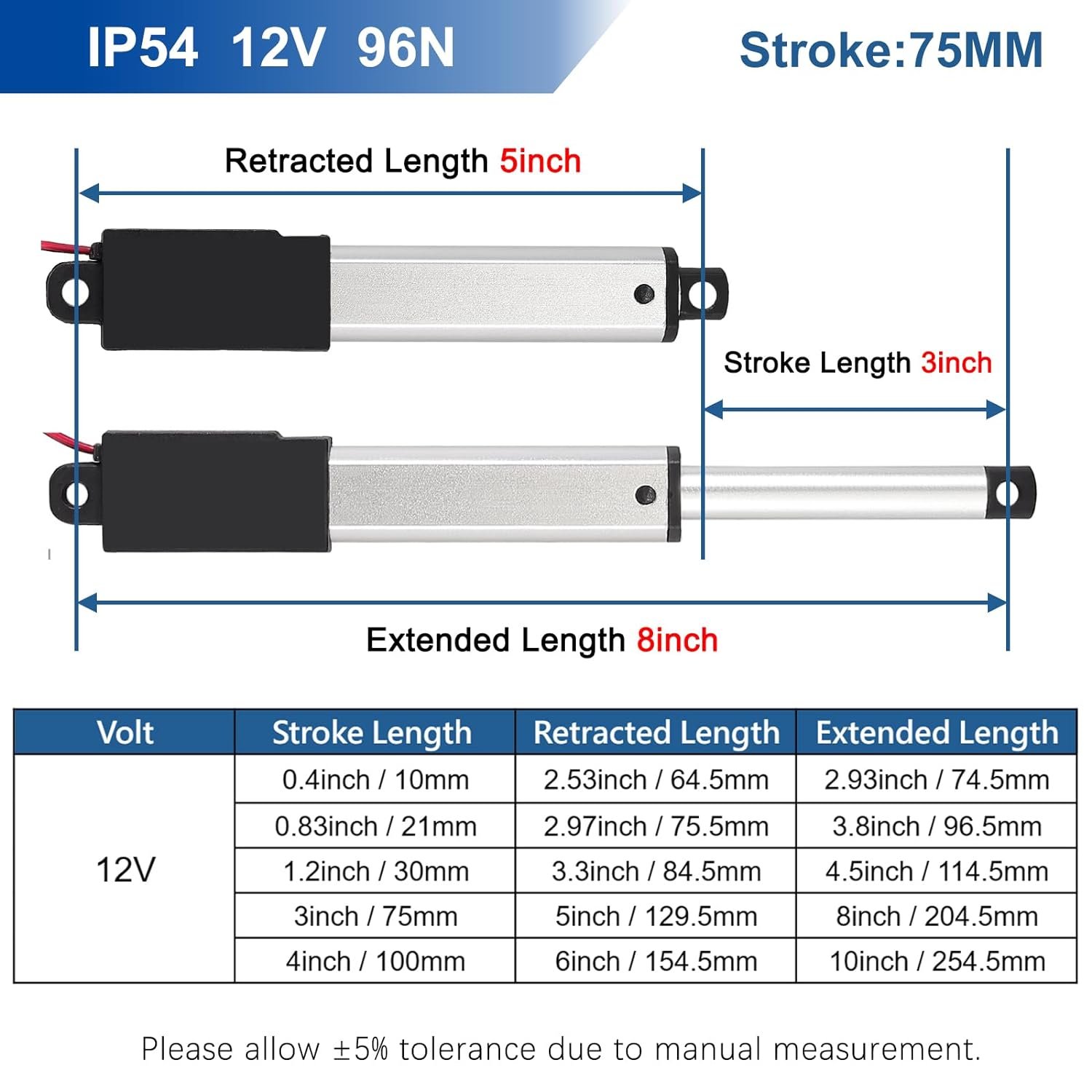

⚙️【Specification】Voltage:12V DC;Stroke Length:3″(75mm),Retracted length: 5″(129.5mm), Extended Length:8″(204.5mm); No load speed: 0.37″/sec (9.5mm/s), Maximum Load:21.6lbs(96N), Working Current: ≤200mA.
⚙️【High quality】The linear actuator is made of high quality aluminum;with high performance motor and built-in limit switch,it can be stopped at any position and automatically stop at the top,with self-locking function.
⚙️【Features】Protection class: IP54 ;Noise level below 50dB ;Ambient temperature:-25° C to +60°C;with reliable performance, stable running,and good environment adaptability etc.
⚙️【Wide application】Micro Linear actuator can be widely used in Robot,Cabinet,Window Opener,Door Opener,Home Automation etc.
⚙️【Package included】1PC DC 12V Mini Linear Actuator and 2PCS Mounting Brackets.
