Product Description
Linear actuator
product manual:
Powder metallurgy technology is used inside the fuselage, pure metal gears, longer life.
Product scope of application:
TV lifting table, massage table, electric bed, medical chair, electric equipment, micro equipment, electric sofa, camera stand, video camera, etc.

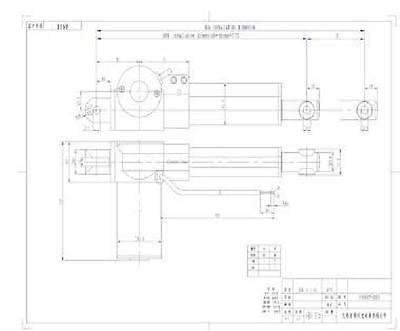

specification: Input: 12VDC Stroke:600mm Speed: 5 mm/s—3000N(Load Capacity) Limited Switch: Built-in Min Installation Dimension: A=175mm+600mm Max Installation Dimension: A=175mm+1200mm Protective Class: IP54 Operation Temperature:-26~65℃
Alloy material:
It is made of high-quality aluminum alloy, with firm appearance and compact structure design.
Powder metallurgy:
the product is light in weight, all-metal gears. There will be gear friction sound during work, which is a normal phenomenon.

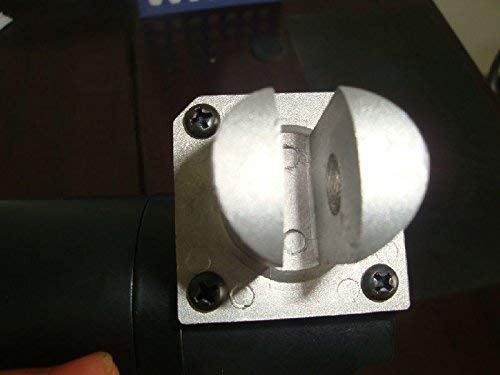

The bottom of the push rod:
the bottom workmanship is displayed, and the material is good to ensure the safety and stability of the motor.
Travel limit:
There is a travel limit switch at each end of the push rod. After the telescopic rod runs to the end or to the top, it will automatically stop.
Low noise:
The motor runs smoothly, has a significant low-noise performance.
Product application range:
Electric lifting table
Electric massage chair
Electric medical window
Electric lifting table
Date First Available : June 28, 2021
Manufacturer : SERBESTVE
ASIN : B0983FQJDL
Input: 24VDC; Stroke: 600mm; Speed: 5 mm/s—3000N (load capacity); Limit switch: built-in
Durability: Powder metallurgy technology is used inside the fuselage, pure metal gears, longer life.
Stable: Screw gasket design, specially added flat washers, effectively prevent the screws from falling off automatically, quality assurance, safety and worry.
The pure metal design inside and outside of the motor greatly increases the service life of the product. There will be metal friction sound when working, which is a normal phenomenon.
