A water leakage detector system is an important device to prevent the pipeline from leaking, thereby securing the whole pipeline. Based on the extensive product line of electric ball valves, U.S. Solid has developed a water leak detection system of our own.
Specifications:
Model: USS-LDV00005
Output Power: <5 W
Working Pressure: <1.0 MPa
Size of Shut-Off Valve: 3/4 inches Medium Temperature: 0-90°C(32-194℉)
IP Rating: IP 65
Alarm Startup Time: 1 s
Valve Close Startup Time: 1 s
Working Voltage: 5V DC
Open/Close Time: <5 s
Lifetime: > 50000 Times
Bore Type: Standard

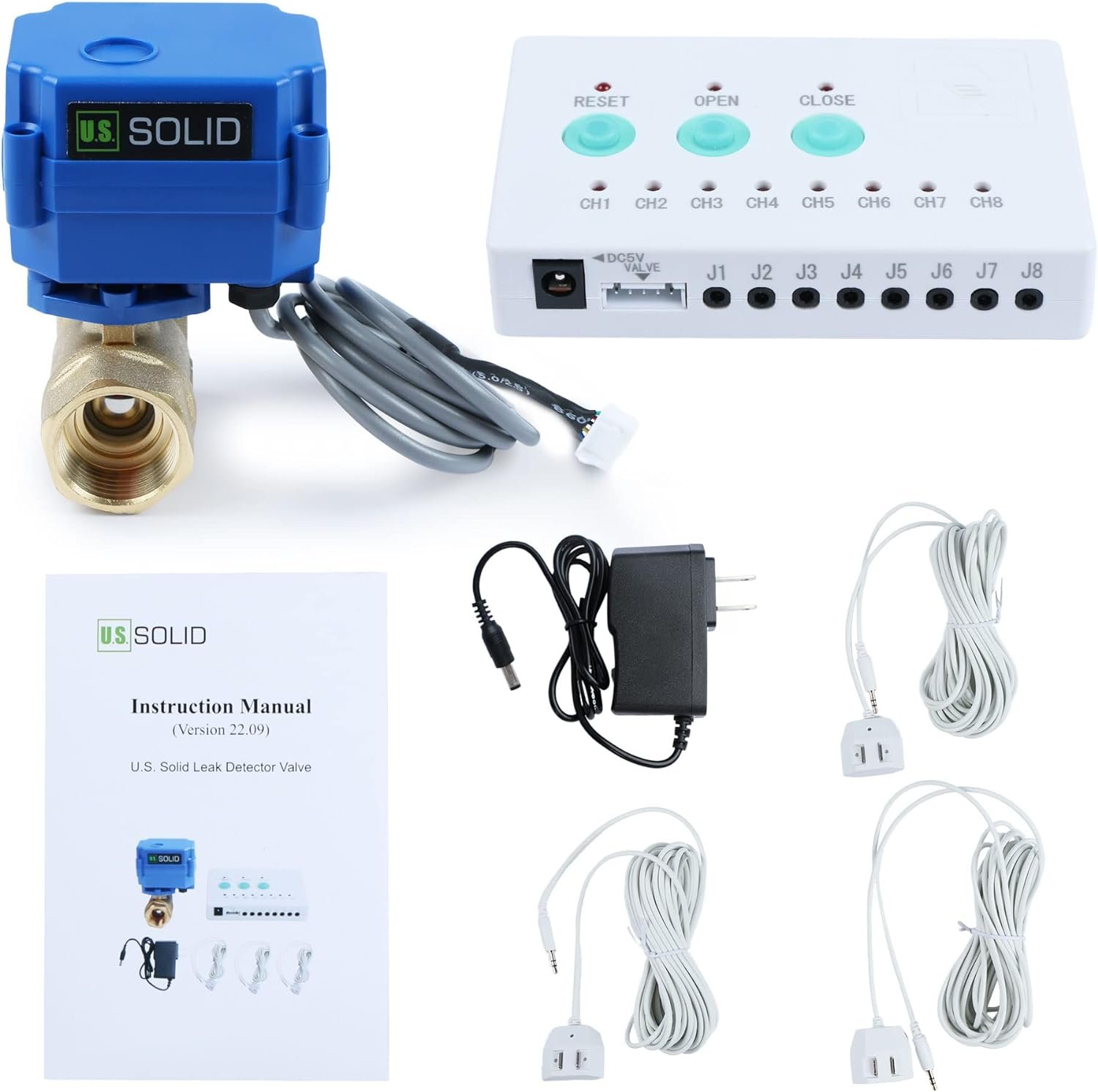

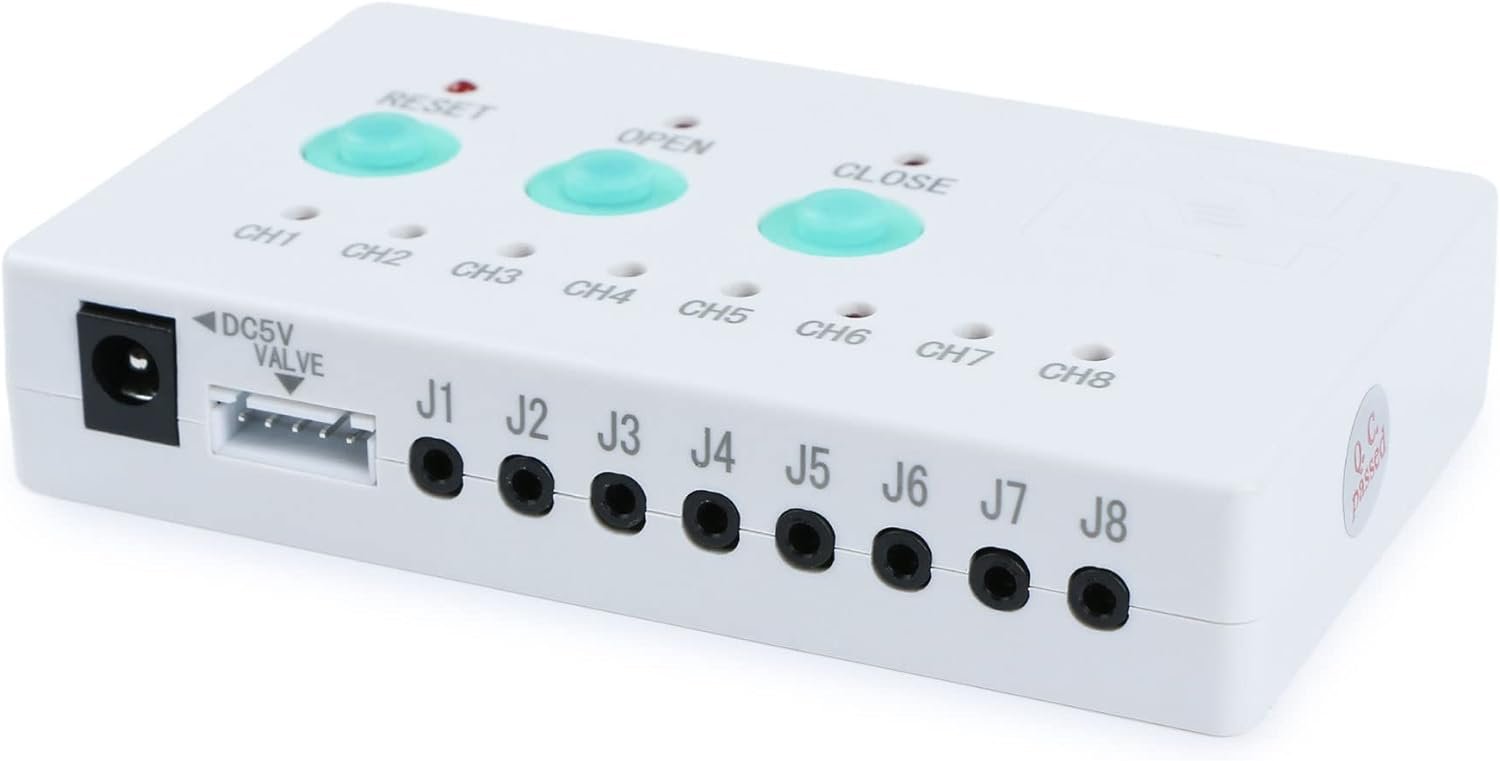

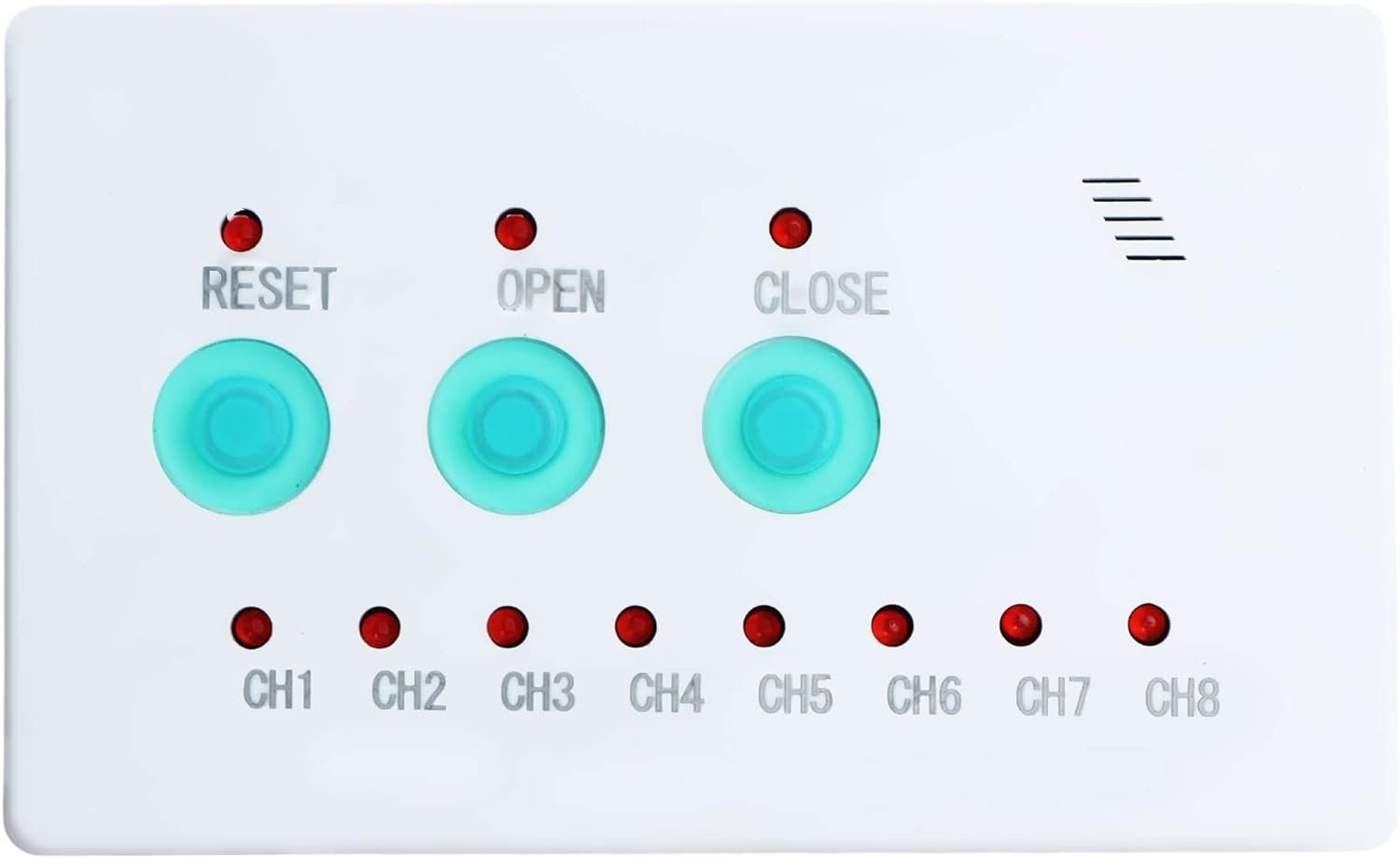

Controller: This water leak detector system comes with a controller which connect all important components and timely make an order to shut off once leakage is detected

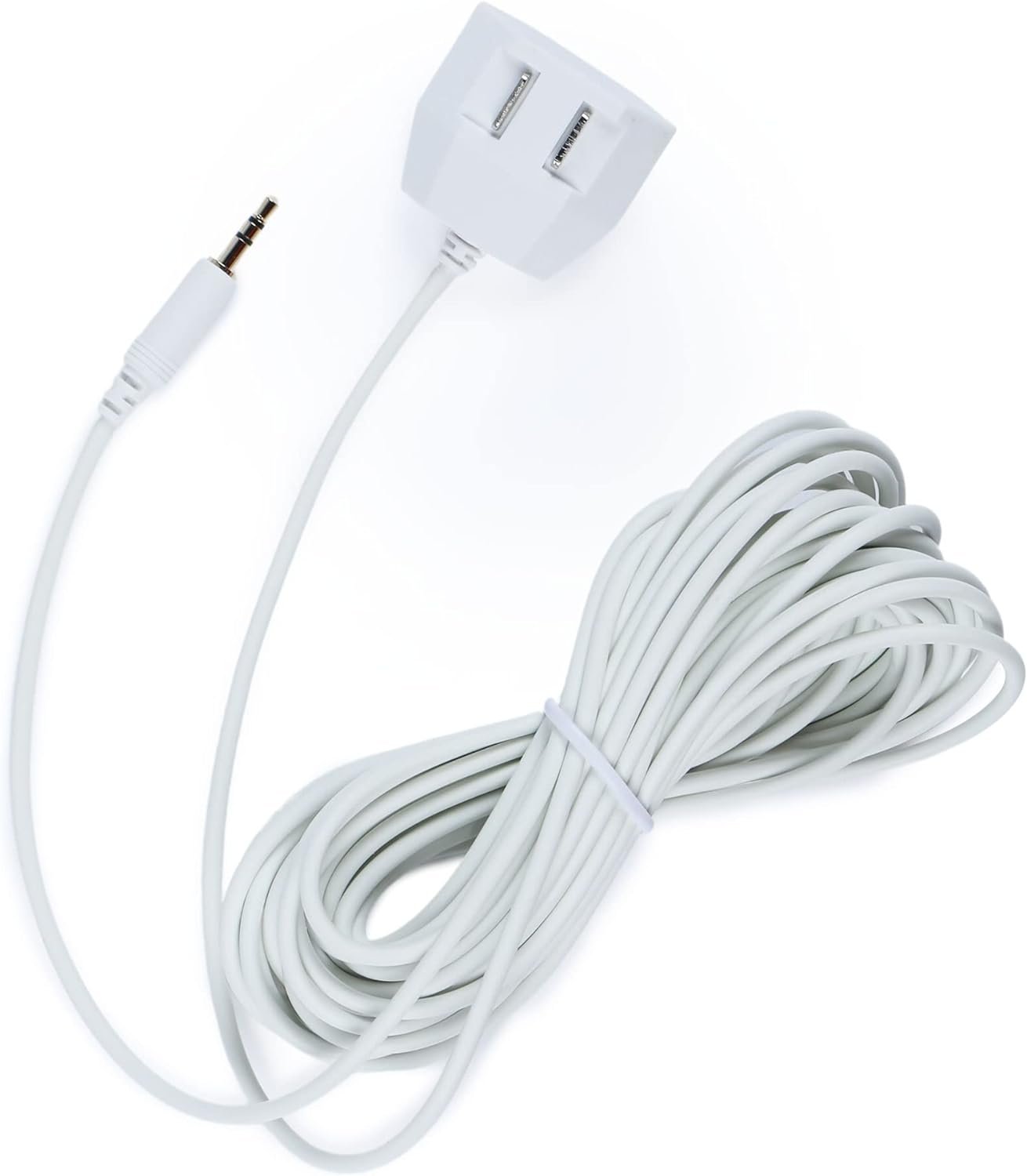

3 Sensors: The water leakage detector has 3 sensors and each is 19.69 feet long, they are excellent tools to monitor the leakage, once leakage detected, they will send the signal to controller as soon as possible

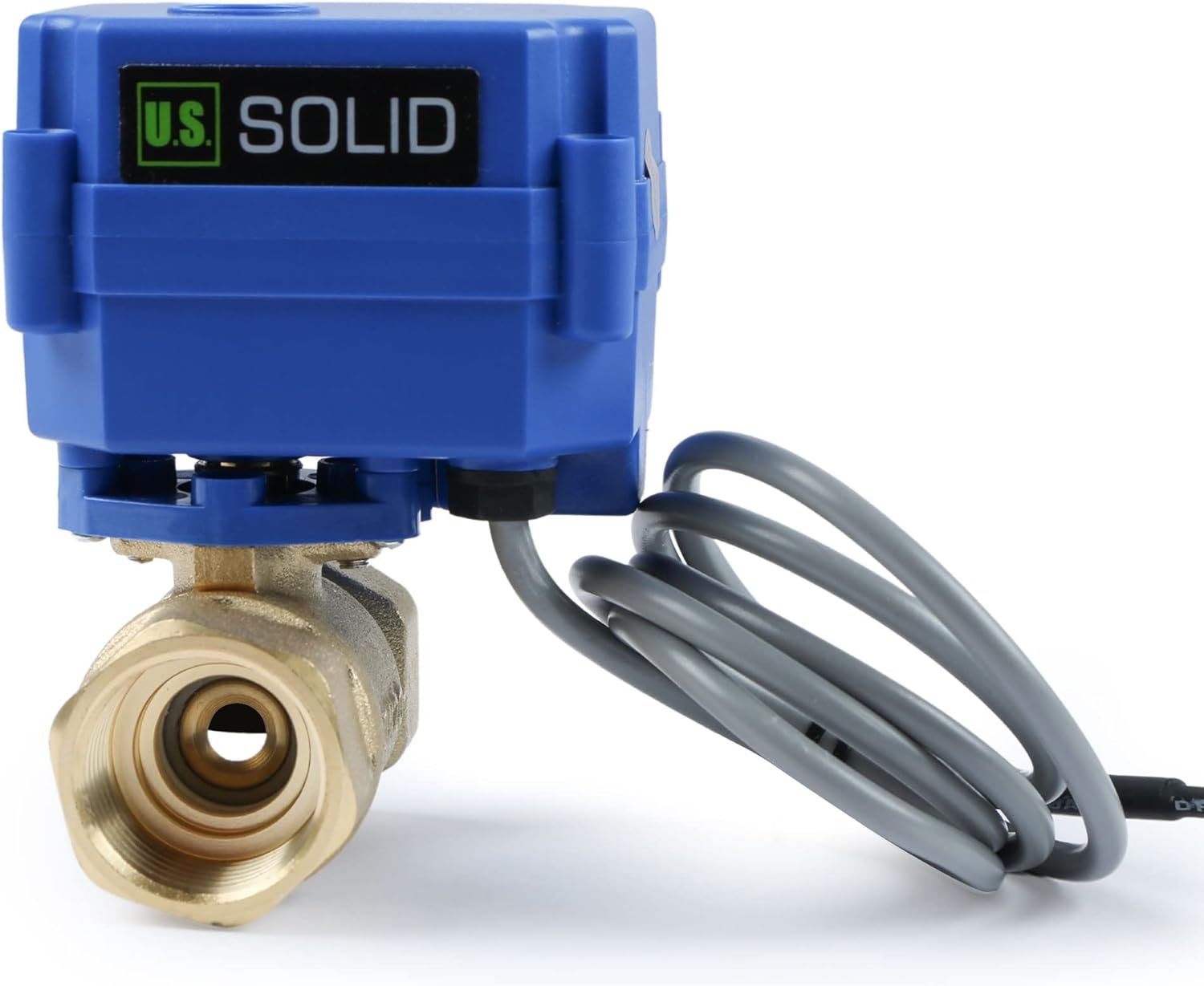

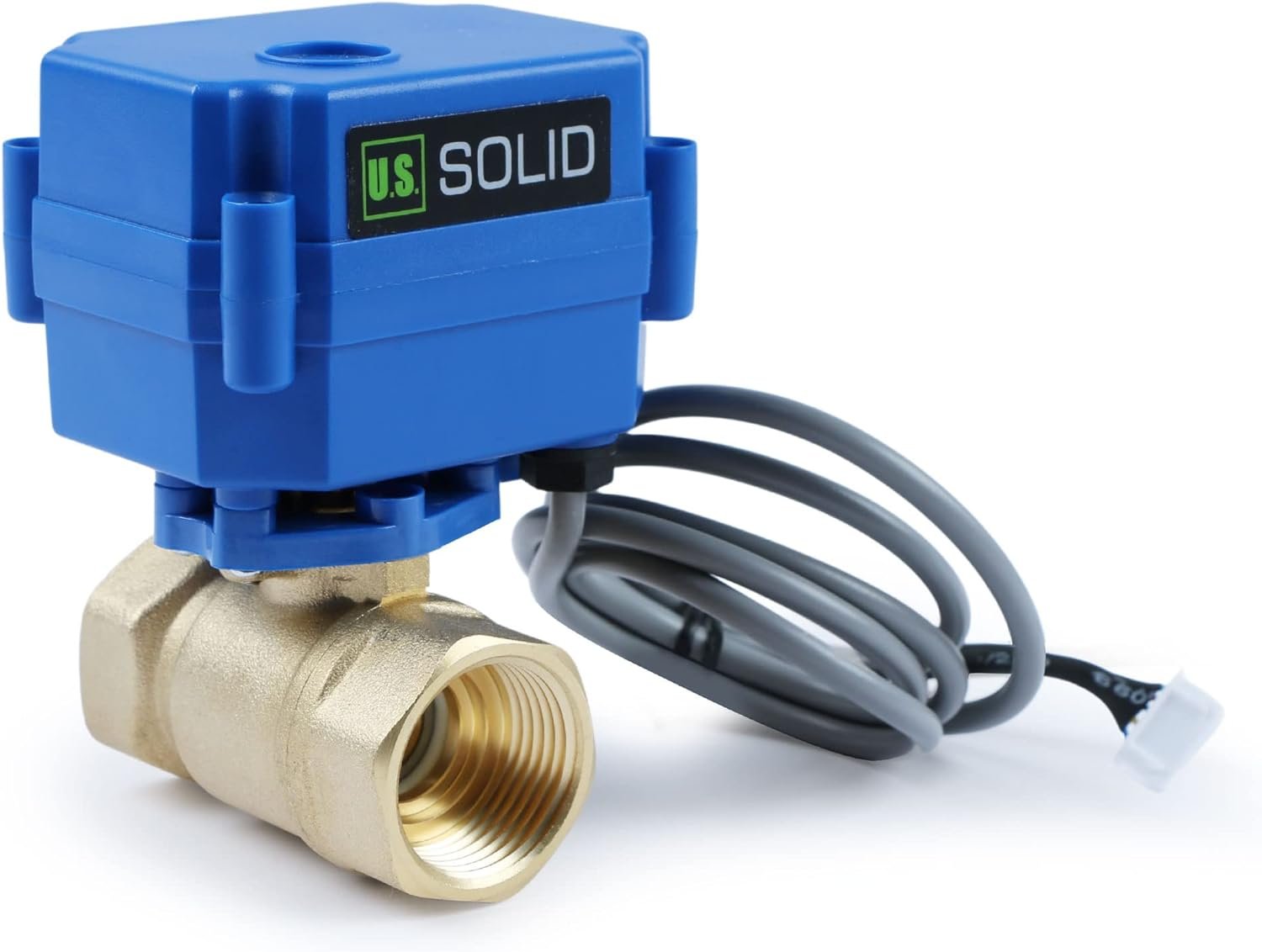

Shut-Off Valve: A motorized ball valve is equipped in the leak protection system to open and close the line and immediately shut off the line once the controller send the signal
Sound Alarm: The leak detector has a sound alarm, as soon as any leakage is detected, the alarm will beep to warn, until the leakage is clean up and reset, the sound alarm will stop
High Quality: The close or open time of shut-off valve is 5 seconds, and it has a long lifetime of 50,000 times. Meanwhile, the whole system come with the IP65 waterproof rating
