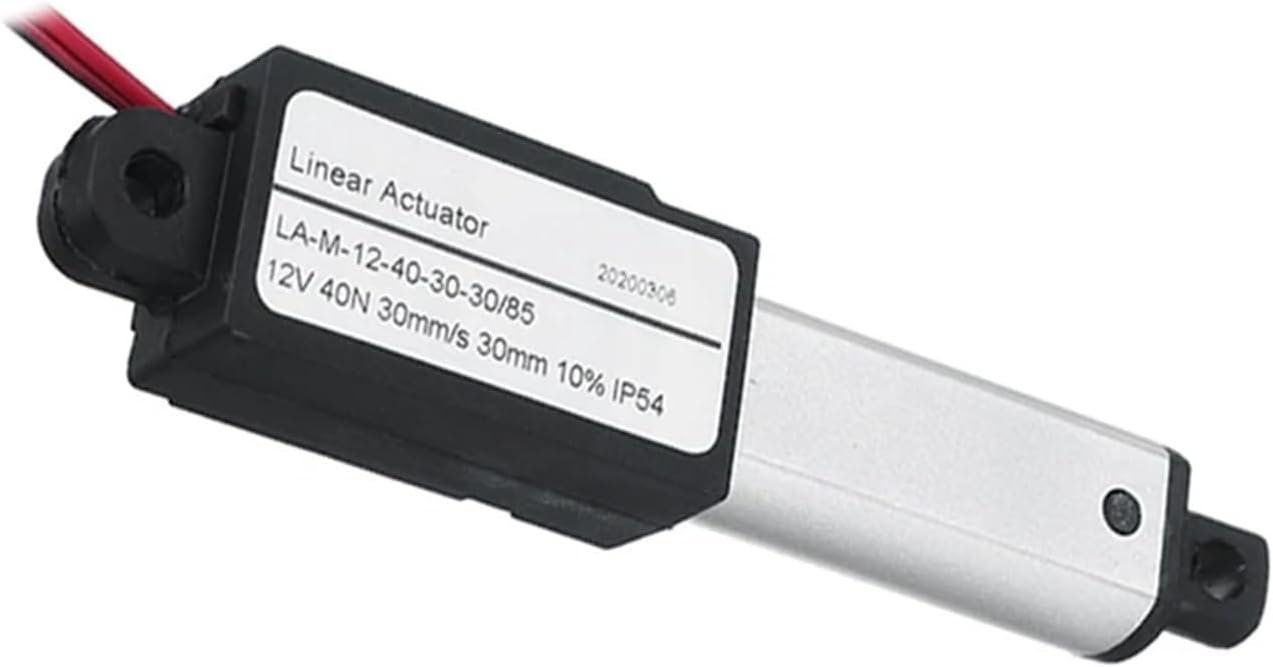

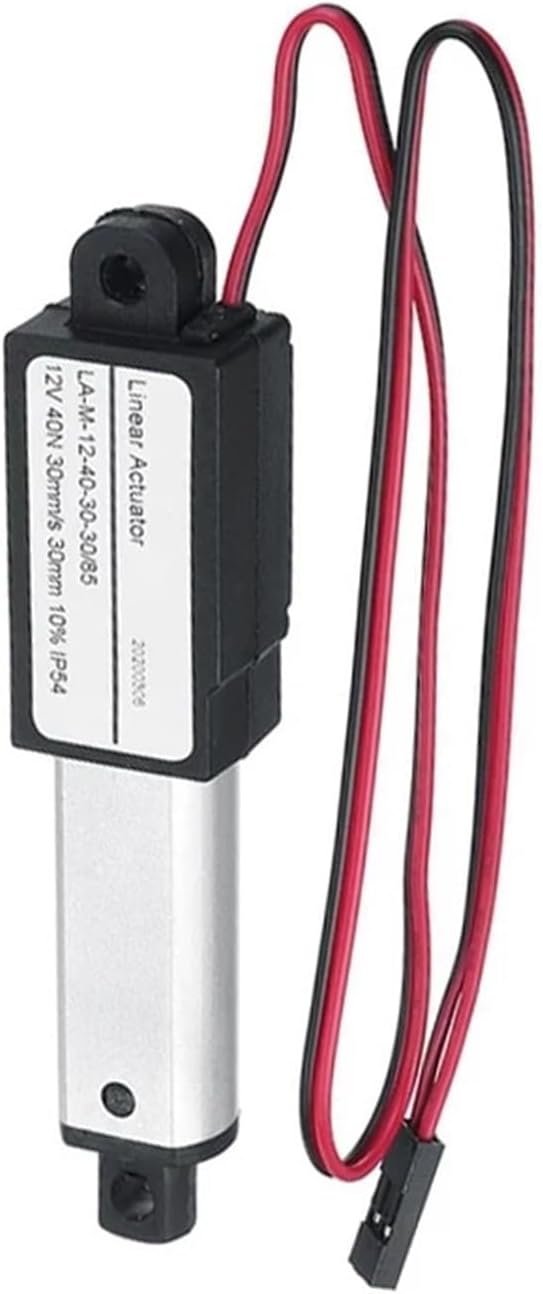

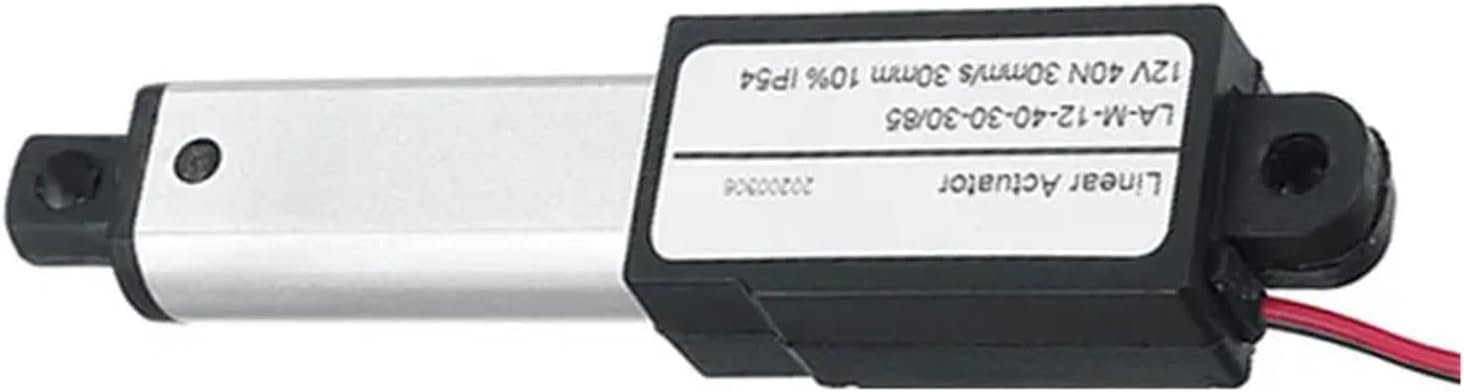

RWRAPS 10/17.5/21/30/50/100mm Stroke 12V Micro Linear Actuator Motor Durable and Compact for Controls Robotics Home Automation (Size : 12V 9.5MMS 96N, Color : 50MM)

Price: $68.69
(as of May 26, 2024 01:28:07 UTC – Details)

Linear actuator spec:
1.Type OK03linear actuator
2.Input 12V DC
3. Max Load 188N=18KG=44LBS
4.Max Speed 150mm per second
5.Limited switch With
6.Duty cycle 25%
7.Inner tube material Aluminum alloy
8.Stroke length Max 150mm
9. Lmin and Lmax Normal Lmin=Stroke+54.5
10. Color Black
11.Operation temperature -26 ~ +65 degree
1 L1=fully close length
Lmin means the length when linear actuator fully closed, meanwhile,it will touch the tail limited switch and stop automatically.
2Stroke means the movement length of linear actuator.
3 L2=fully open length
Lmax means the length when linear actuator fully open, meanwhile,it will touch the head limited switch and stop automatically.

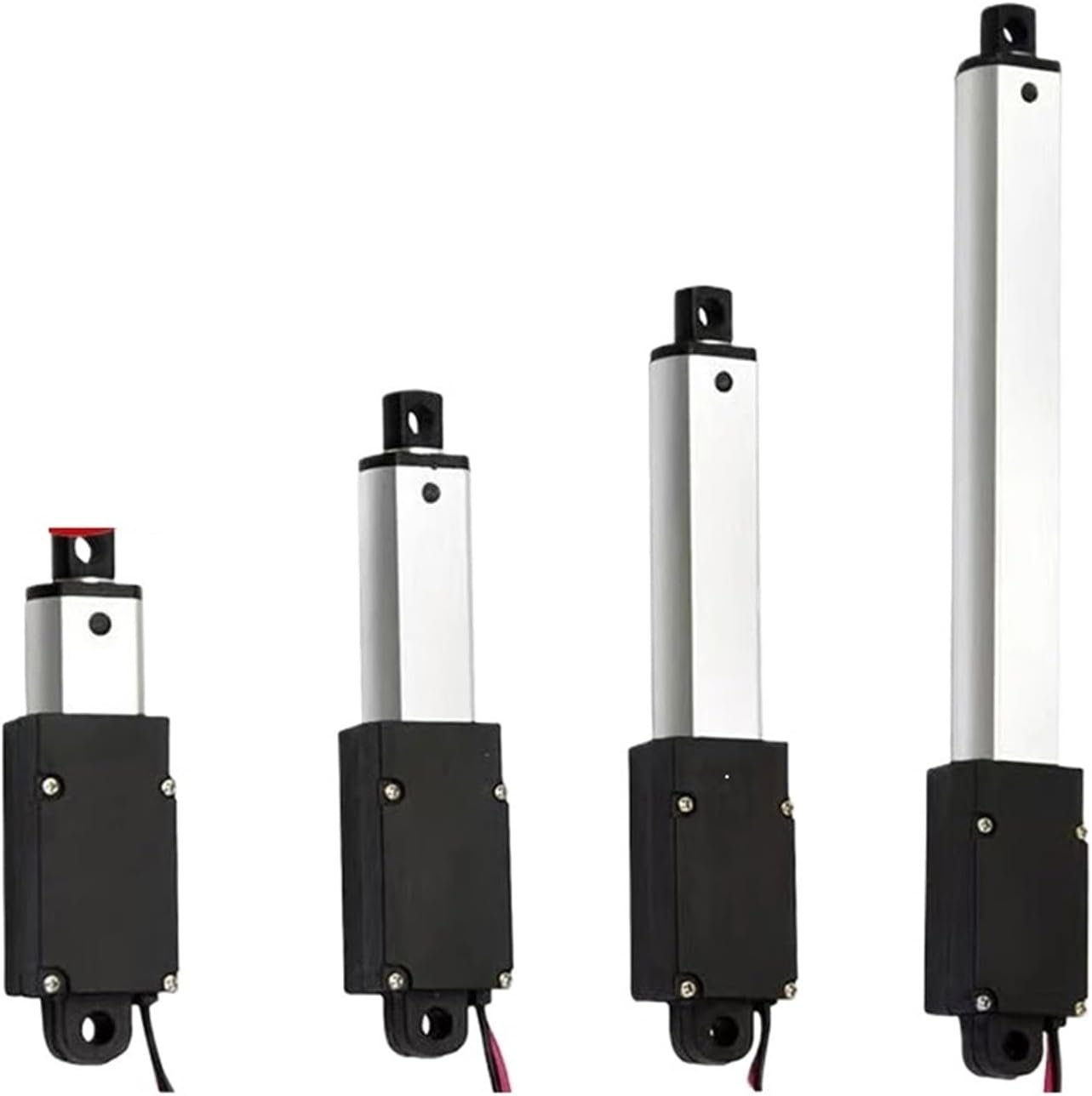

Stroke 10MM L1=64.5MM, L2=74.5MM
Stroke 17.5MM L1=72MM, L2=89.5MM
Stroke 21MM L1=75.5MM, L2=96.5MM
Stroke 25MM L1=79.5MM, L2=104.5MM
Stroke 30MM L1=84.5MM, L2=114.5MM
Stroke 50MM L1=104.5MM,L2=154.5MM
Stroke 75MM L1=129.5MM,L2=204.5MM
Stroke 100MM L1=154.5MM,L2=254.5MM
Stroke 150MM L1=204.5MM,L2=354.5MM
[POWER SAVING] Push bar each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity so that the motor will not idle. Cut off the power, the motor with self-locking function can be stop at any position.

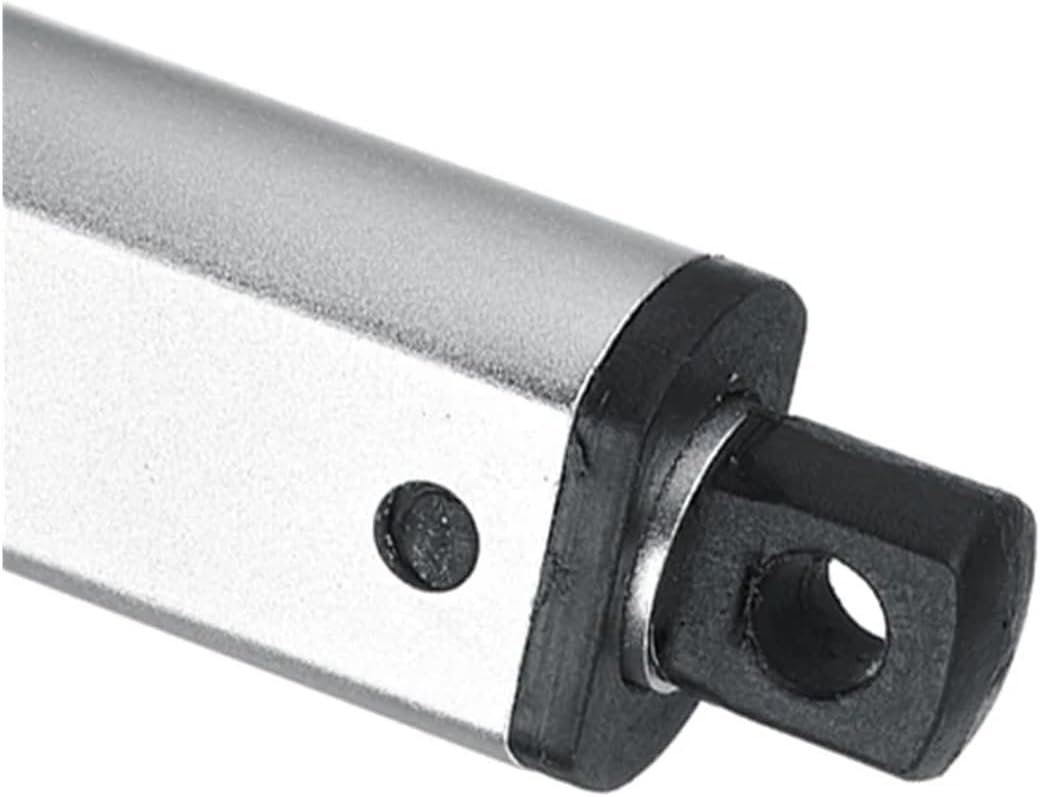

[DRIVEN] The linear actuator can drive other objects to push, pull, rise and drop. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
[PRODUCT APPLICATIONS] The linear actuator is used in many areas. Furniture area: sofa, chair, bed, massage chair, electric bed. Office area: serial, wardrobe, office chair, projector, laboratory, workbench. Laboratory industry: door opener, window opener, sweeper, yachts.
NOTE: Please do not disassemble the machine.
