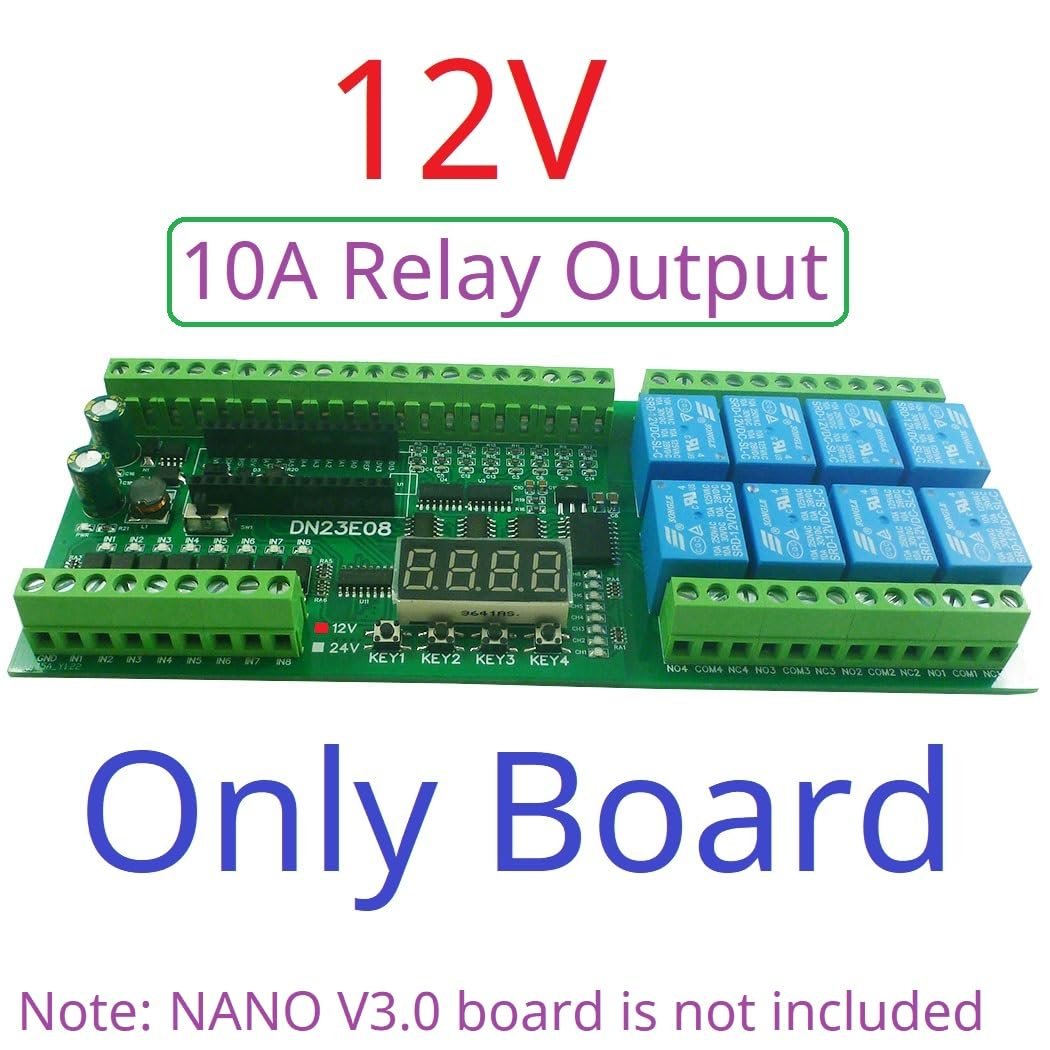

Smart Home Automation Module Controller RS485 Relay PLC IO Expanding Board Code for Arduino Nano Dimmer Switch (1 x DC 12V Only Board)

Price: $28.99
(as of Jun 10, 2024 23:40:31 UTC – Details)

Product Name: Smart Home Automation Module Controller RS485 Relay PLC IO Expanding Board Code for Arduino NANO Dimmer Switch

Package inlcuded(Ship according to the item you purchased):

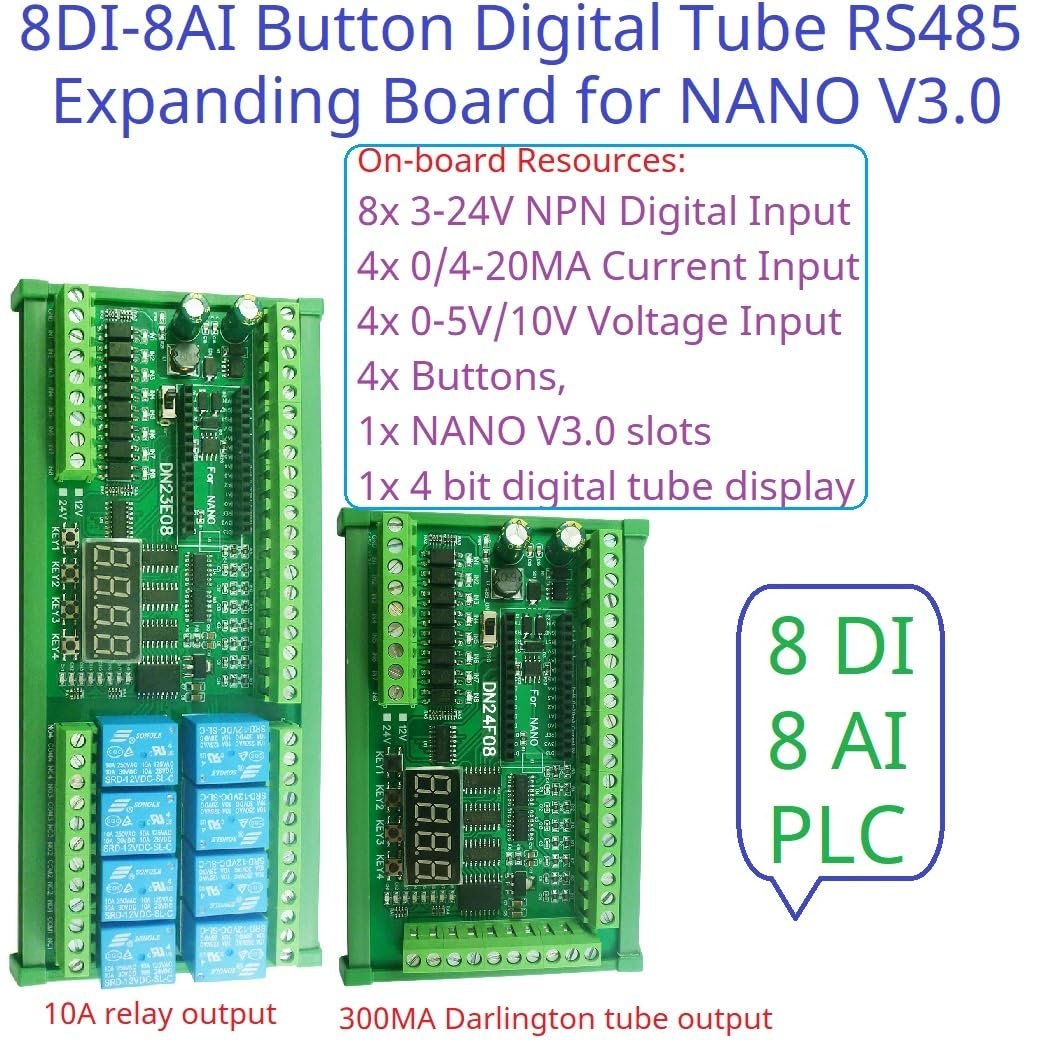

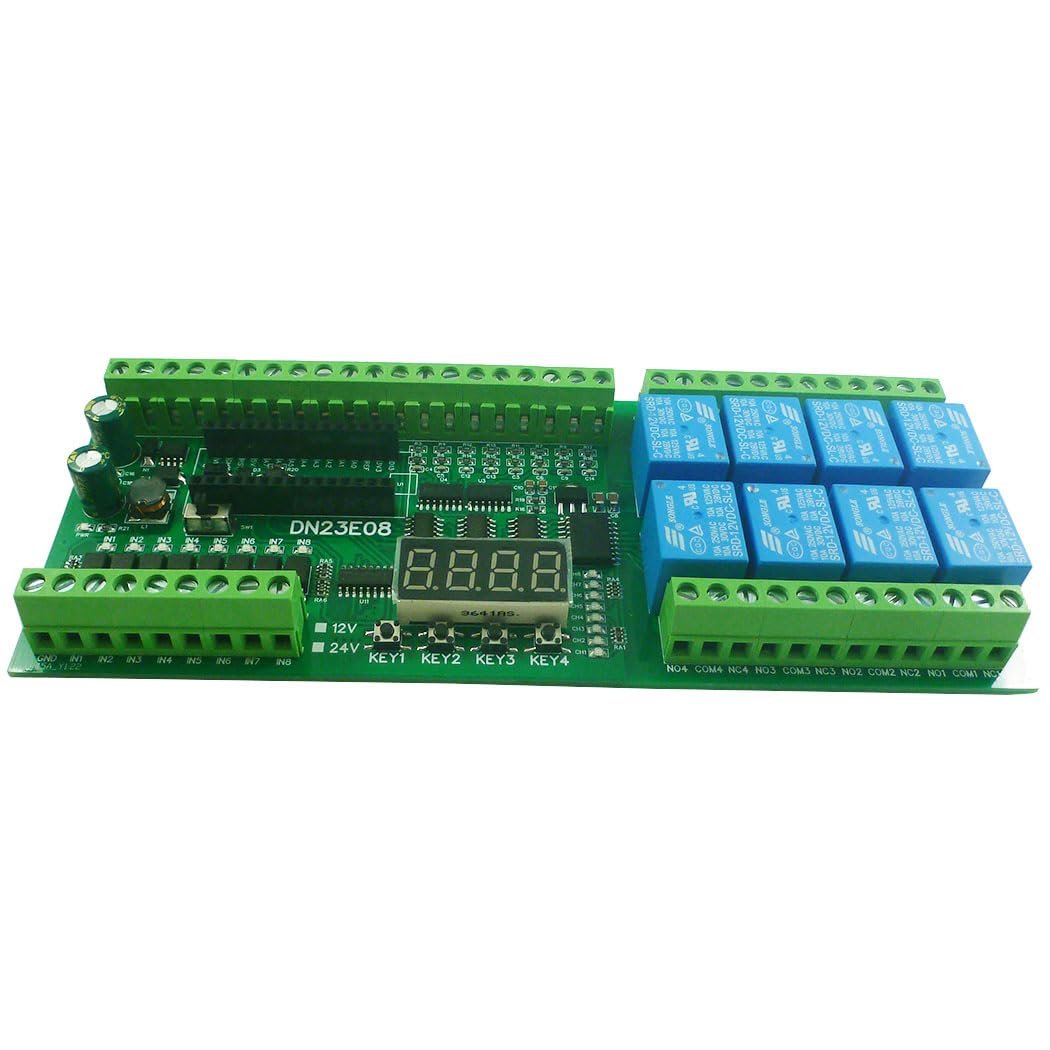

DC 12V 8DI-8AI Digital Analog Multifunction RS485 Expanding Board for NANO V3.0

Product Features:
1. Operating voltage: DC 12V/24V

2. Operating Current : Standby current (Digital tube OFF) 12MA, Standby current 49MA (Digital tube ON), 1 relay open 75MA, 2 relays open 105MA, 3 relays open 131MA, 4 relays open 163MA,5 relays open 184MA, 6 relays open 210MA, 7 relays open 256MA, 8 relays open 289MA

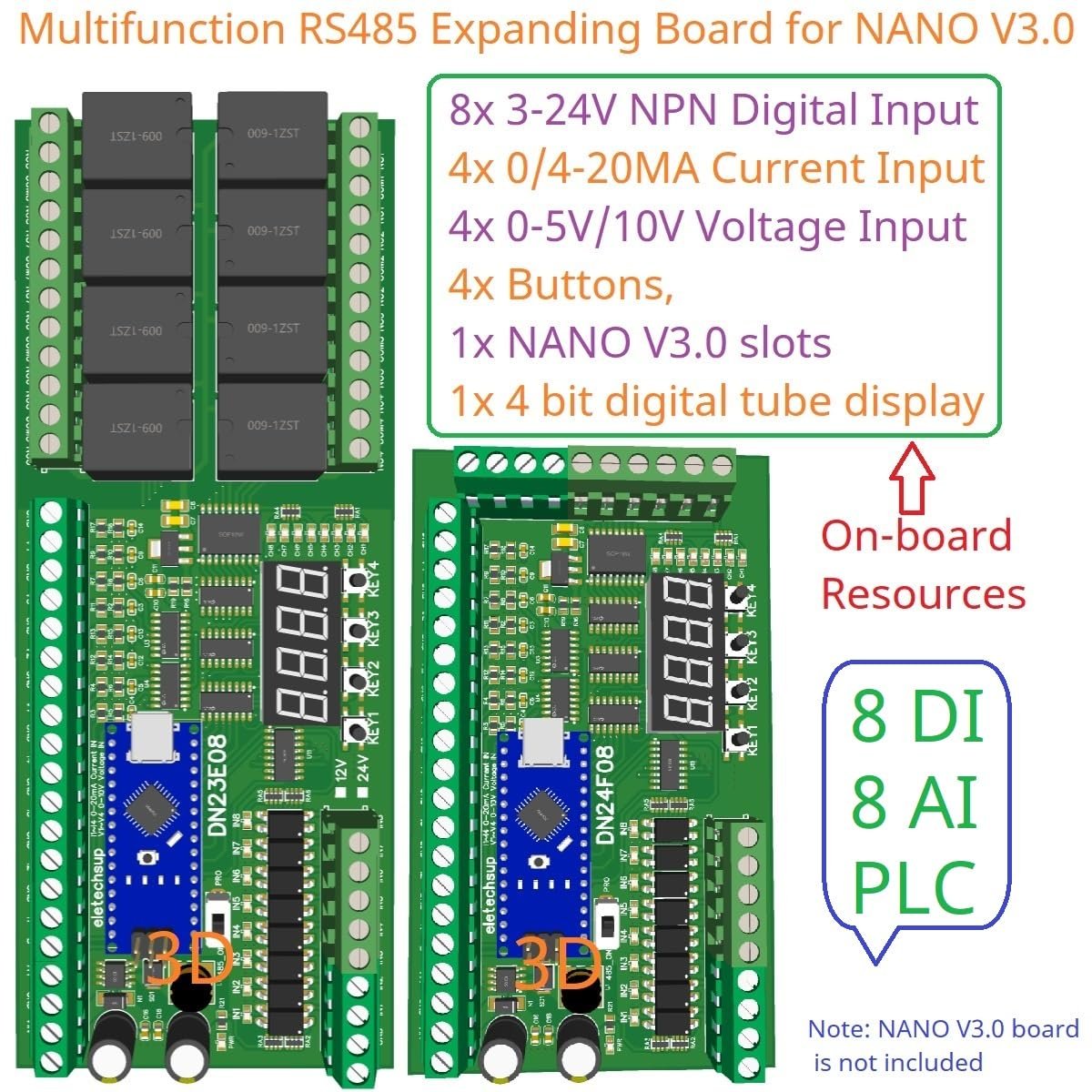

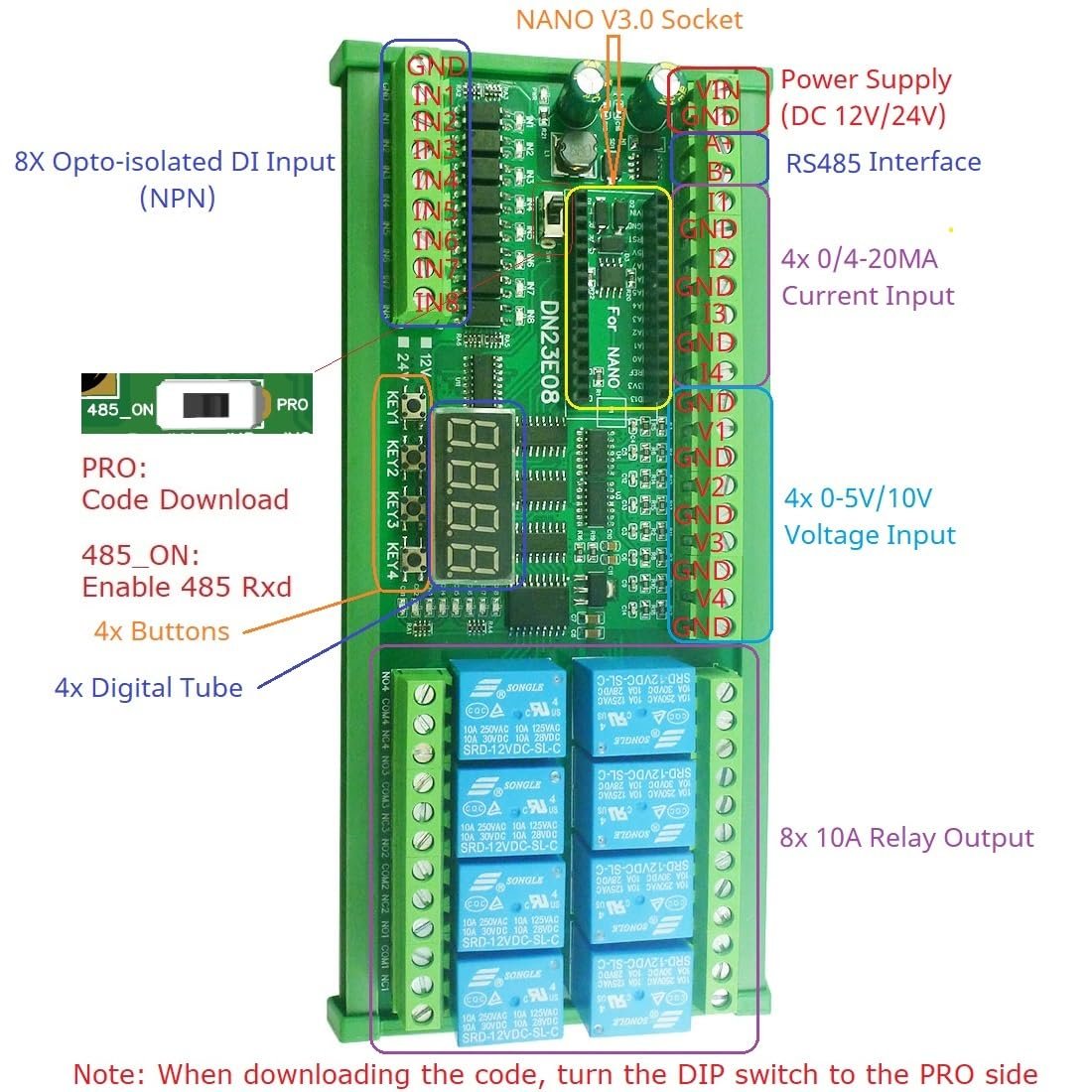

3. on-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x 0/4-20MA Current Input,4x 0-5V/10V Voltage Input,4x buttons, 1x 4 bit digital tube display, 1x NANO V3.0 slots, 8x relay outputs

4. size 180*72*19mm(Only Board)
5. Weight : 184g(Only Board), 312g(with shell)

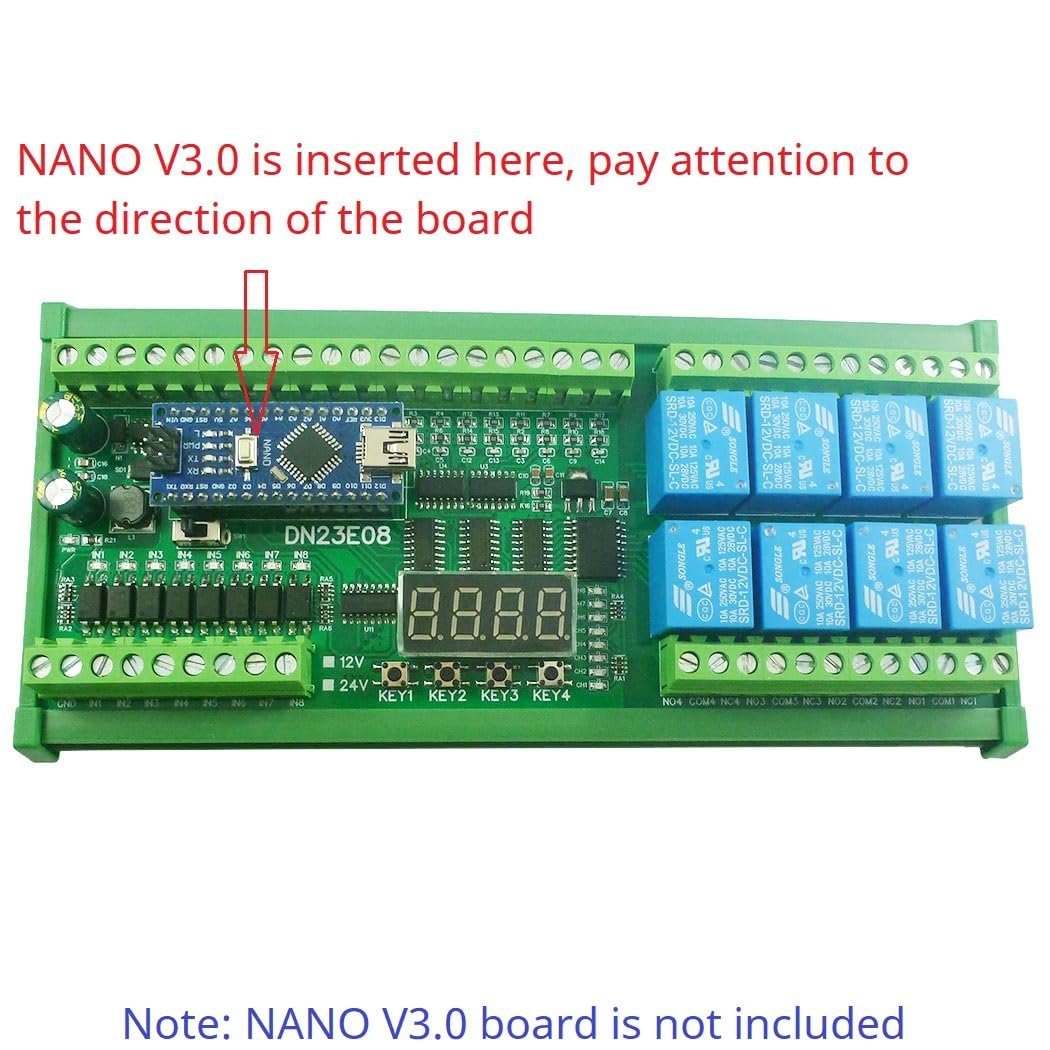

This is an expansion board based on NANO V3.0, and the code(sketch) we provide is only u
Is Discontinued By Manufacturer ‏ : ‎ No
Item Weight ‏ : ‎ 0.06 ounces
Date First Available ‏ : ‎ August 15, 2018
Manufacturer ‏ : ‎ eletechsup
ASIN ‏ : ‎ B0CFVG5ZCB
Country of Origin ‏ : ‎ China

Operating voltage: DC 12V
Operating Current : Standby current (Digital tube OFF) 12MA, Standby current 49MA
size 180*72*19mm(Only Board)
Weight : 184g(Only Board), 312g(with shell)
