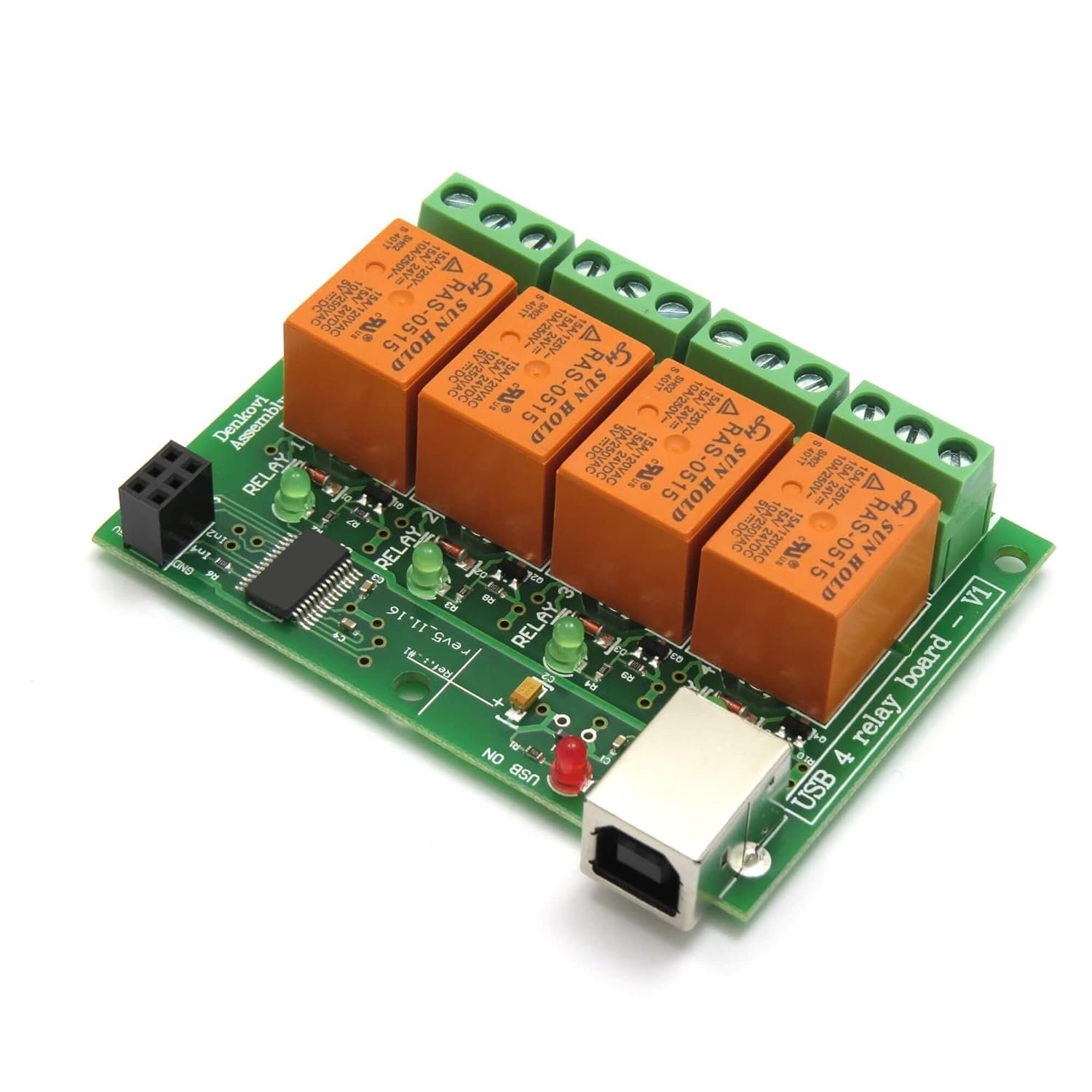

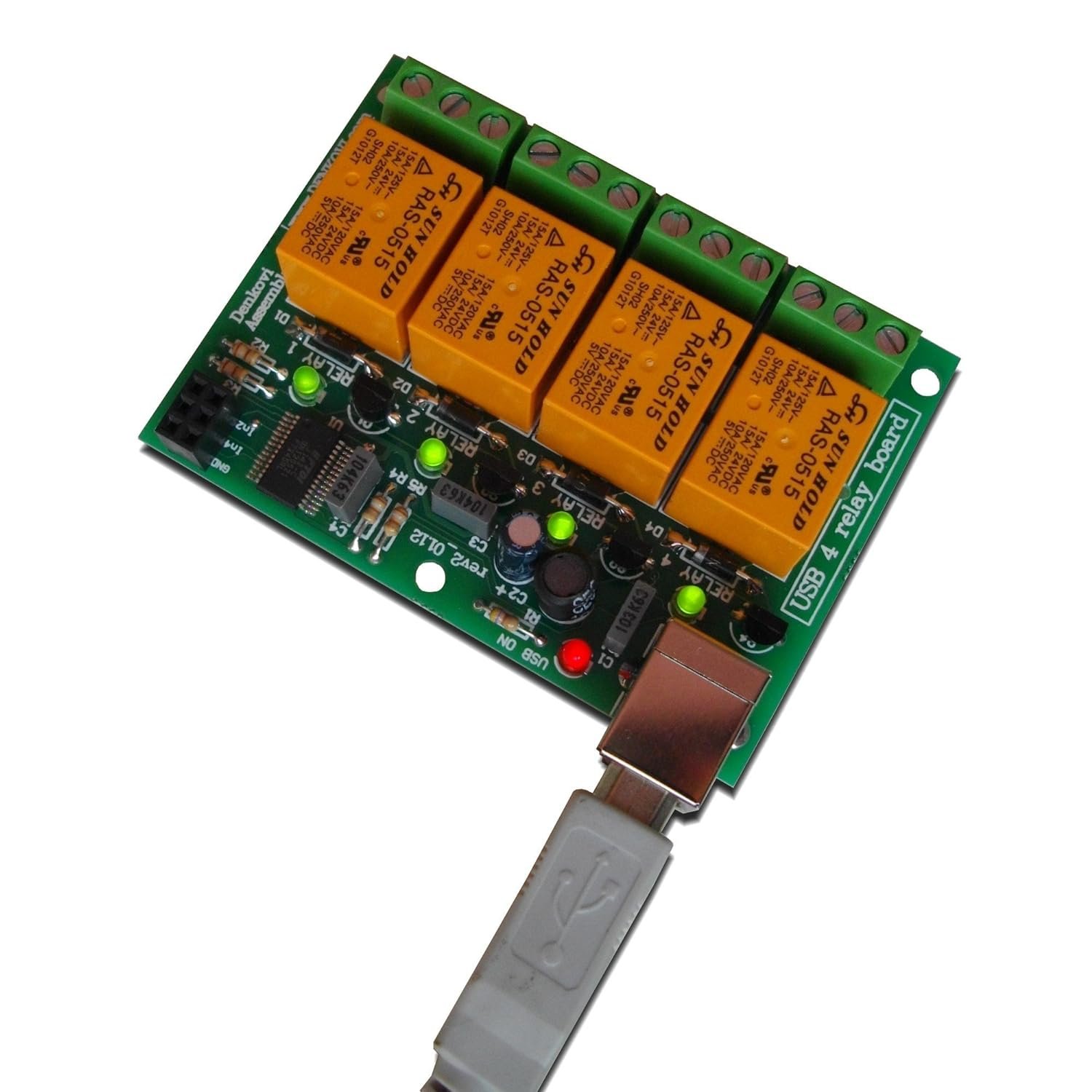

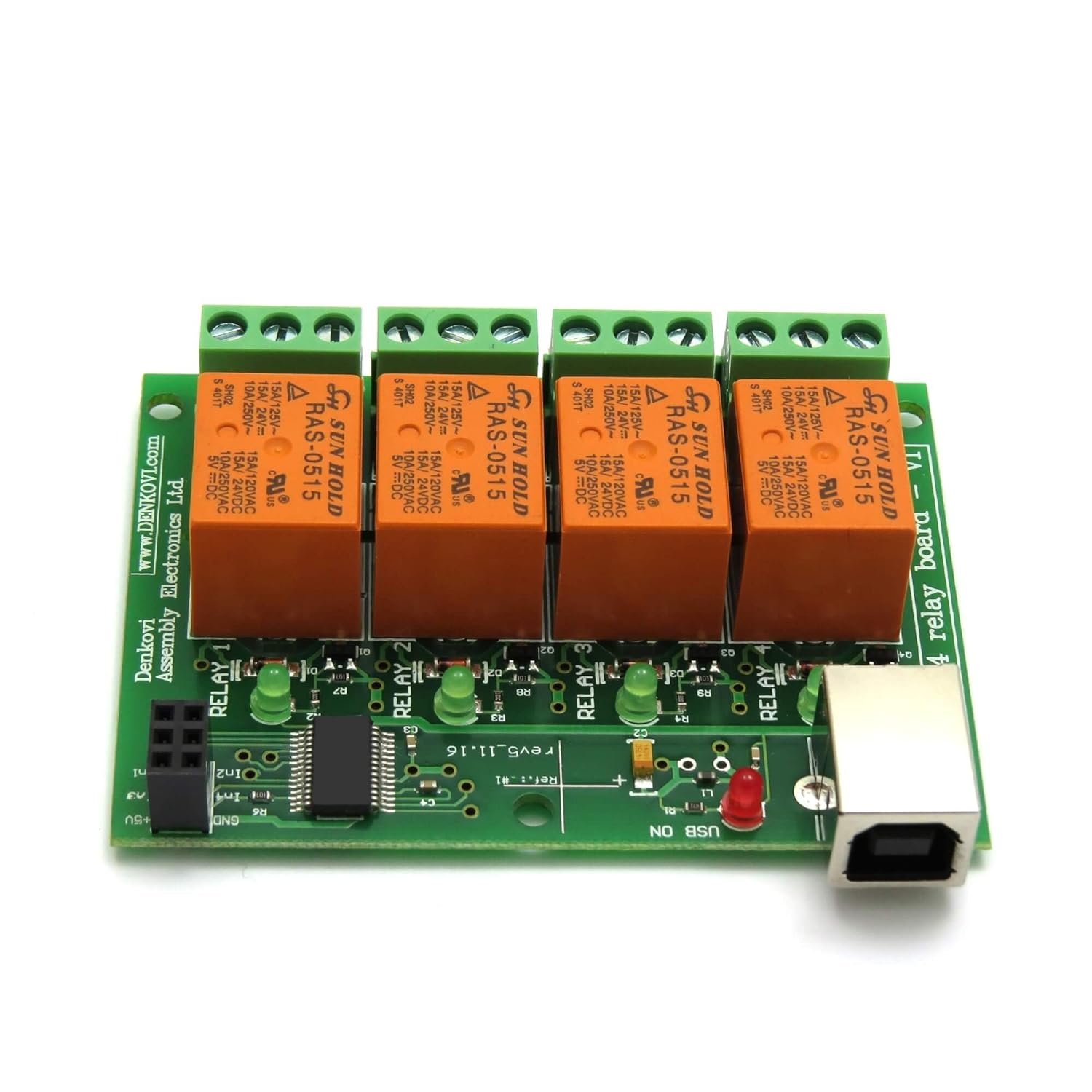

Description This is Four Channel relay board controlled by computer USB port. The usb relay board is with 4 SPDT relays rated up to 10A each. You may control devices 220V / 120V (up to 4) directly with one such relay unit. It is fully powered by the computer USB port. Suitable for home automation applications, hobby projects, industrial automation. The free software allows to control relays manually, create timers (weekly and calendar) and multivibrators, use date and time for alarms or control from command line. We provide software examples in Labview, .NET, Java, Borland C++, Python.
Features:
* PCB parameters: FR4 / 1.5mm / two layers / metalized holes / HAL / white stamp / solder mask / еxtra PCB openings for better voltage isolation / doubled high voltage tracks
* Power supply: from USB port
* Current consumption: 400 mA
* Chip: FT245RL
* Power led: Yes
* Relay leds: Yes
* Size: 77mm x 56mm x 17mm
* Supported by DRM software (Windows and Linux): Yes
* Supported by Denkovi Command line tool (Windows, Linux): Yes
* Android software available (low cost but very useful): Yes
Documentation: http://denkovi.com/Documents/USB4/Current-Version/USB4RelayBoard_UM.pdf
Denkovi command line tool: http://denkovi.com/denkovi-relay-command-line-tool
Denkovi Relay Manager: http://denkovi.com/drm-software
For software examples: please contact with us.
Item Weight : 0.01 ounces
Date First Available : May 17, 2016
Manufacturer : Denkovi Assembly Electronics Ltd
ASIN : B01FSXAJDQ
High quality
4 SPDT Relays RAS-05-15 (10A / 250VAC, 15A / 120VAC, 15A / 24VDC)
Power supply: from USB port (consumption – 400 mA)
Windows/Linux free software
Software examples: VB.NET, Labview, C#.NET, VB6, Python
